fmm::FastMultipole Class Reference

#include <multipole.h>

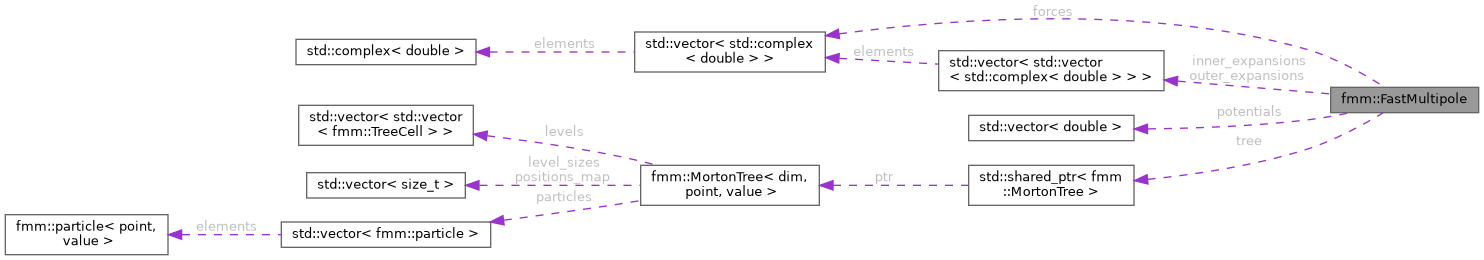

Collaboration diagram for fmm::FastMultipole:

Public Member Functions
	FastMultipole (const std::vector< particle2d > &particles, double eps=1.e-8, int N=FMM_AUTO, int tree_depth=FMM_AUTO)
	FastMultipole (std::vector< particle2d > &&particles, double eps=1.e-8, int N=FMM_AUTO, int tree_depth=FMM_AUTO)
	FastMultipole (const std::vector< particle2d > &source_particles, const std::vector< particle2d > &target_particles, double eps=1.e-8, int N=FMM_AUTO, int tree_depth=FMM_AUTO)

Public Attributes
std::vector< std::complex< double > >	forces
std::vector< double >	potentials

Private Member Functions
void	Solve (std::vector< particle2d > &&particles, double eps=1.e-8, int N=FMM_AUTO, int tree_depth=FMM_AUTO)
void	Multipole (std::complex< double > *a, const std::pair< size_t, size_t > &particle_range, const std::complex< double > &z0)
void	M2M (const std::complex< double > *a, const std::complex< double > &z0, std::complex< double > *b, std::vector< std::complex< double > > &work)
void	M2L (const std::complex< double > *a, const std::complex< double > &z0, std::complex< double > *b, std::vector< std::complex< double > > &work)
void	L2L (const std::complex< double > *a, const std::complex< double > &z0, std::complex< double > *b)
void	Upward ()
void	Downward ()
void	ComputePotentials ()
void	ComputeForces ()

Private Attributes
std::shared_ptr< MortonTree2d >	tree
std::vector< std::vector< std::complex< double > > >	outer_expansions
std::vector< std::vector< std::complex< double > > >	inner_expansions
size_t	tree_depth
int	N
size_t	num_particles
size_t	targets_num
tbb::enumerable_thread_specific< std::vector< std::complex< double > > >	local_work

Detailed Description

Definition at line 10 of file multipole.h.

Constructor & Destructor Documentation

FastMultipole() [1/3]

fmm::FastMultipole::FastMultipole	(	const std::vector< particle2d > &	particles,
		double	eps = 1.e-8,
		int	N = FMM_AUTO,
		int	tree_depth = FMM_AUTO
	)

Definition at line 454 of file multipole.cpp.

{
    auto particles_copy = particles;
    targets_num = particles.size();
    Solve(std::move(particles_copy), eps, N_, tree_depth_);
}

FastMultipole() [2/3]

fmm::FastMultipole::FastMultipole	(	std::vector< particle2d > &&	particles,
		double	eps = 1.e-8,
		int	N = FMM_AUTO,
		int	tree_depth = FMM_AUTO
	)

Definition at line 461 of file multipole.cpp.

{
    targets_num = particles.size();
    Solve(std::move(particles), eps, N_, tree_depth_);
}

FastMultipole() [3/3]

fmm::FastMultipole::FastMultipole	(	const std::vector< particle2d > &	source_particles,
		const std::vector< particle2d > &	target_particles,
		double	eps = 1.e-8,
		int	N = FMM_AUTO,
		int	tree_depth = FMM_AUTO
	)

Definition at line 467 of file multipole.cpp.

{
    std::vector<particle2d> particles(source_particles.size() + target_particles.size());
    memcpy(particles.data(), target_particles.data(), target_particles.size() * sizeof(particle2d));
    memcpy(particles.data() + target_particles.size(), source_particles.data(), source_particles.size() * sizeof(particle2d));
    targets_num = target_particles.size();
    Solve(std::move(particles), eps, N_, tree_depth_);
}

Member Function Documentation

ComputeForces()

void fmm::FastMultipole::ComputeForces ( )

private

Definition at line 345 of file multipole.cpp.

{
    tbb::enumerable_thread_specific<std::complex<double>> dz_local;
    tbb::enumerable_thread_specific<std::complex<double>> force_local;
    tbb::enumerable_thread_specific<std::vector<std::complex<double>>> buf_forces_local((std::vector<std::complex<double>>(num_particles)));

    const auto& leaves = tree->levels.back();
    const auto& leaves_inner = inner_expansions.back();
    auto& particles = tree->particles;

#ifdef FMM_MPI
    auto [Begin, End] = LocalPart(0, tree->level_sizes.back());
#else
    size_t Begin = 0, End = tree->level_sizes.back();
#endif

    decltype(&TreeCell2d::source_range) range_ptr;
    if (tree->targets_num == 0) // targets = sources
        range_ptr = &TreeCell2d::source_range;
    else
        range_ptr = &TreeCell2d::target_range;
    const auto& index_mapping = tree->positions_map;

    tbb::parallel_for(Begin, End, [&](size_t i) {
        auto& dz = dz_local.local();
        auto& force = force_local.local();
        const auto& cell = leaves[i];
        const auto& inner = leaves_inner.data() + i * N;
        auto& buf_forces = buf_forces_local.local();

        const auto& [p1_begin, p1_end] = cell.*range_ptr;

        for (auto j = p1_begin; j < p1_end; ++j)
        {
            auto& particle = particles[j];

            if (range_ptr == &TreeCell2d::target_range && particle.q == 0)
            {
                force = 0.0;

                const auto& [p2_begin, p2_end] = cell.source_range;
                for (auto k = p2_begin; k < p2_end; ++k)
                    force += Force2d(particle, particles[k]);

                for (const auto& idx : cell.closeneighbours)
                {
                    const auto& neighbour_cell = leaves[idx];
                    const auto& [p2_begin, p2_end] = neighbour_cell.source_range;

                    for (auto k = p2_begin; k < p2_end; ++k)
                        force += Force2d(particle, particles[k]);
                }
            }
            else
            {
                force = Force2d(particle, particle);

                for (auto k = j + 1; k < p1_end; ++k)
                {
                    Force2dMutual(particle, particles[k], force, buf_forces[k]);
                }

                for (const auto& idx : cell.closeneighbours)
                {
                    const auto& neighbour_cell = leaves[idx];
                    const auto& [p2_begin, p2_end] = neighbour_cell.source_range;

                    for (auto k = p2_begin; k < p2_end; ++k)
                        Force2dMutual(particle, particles[k], force, buf_forces[k]);
                }
            }
            buf_forces[j] += force;
        }

        for (auto j = p1_begin; j < p1_end; ++j)
        {
            auto& particle = particles[j];
            force = 0.0;
            dz = particle.center - cell.center;
            complex<double> dzpow{ 1.0 };
            for (int k = 1; k < N; ++k)
            {
                force += double(k) * inner[k] * dzpow;
                dzpow *= dz;
            }
            buf_forces[j] += force;
        }
    });

    auto& buf_forces = *buf_forces_local.begin();
    for (auto it = buf_forces_local.begin() + 1; it < buf_forces_local.end(); it++)
    {
        const auto& x = *it;
        tbb::parallel_for(tbb::blocked_range<size_t>(0, num_particles),
            [&](tbb::blocked_range<size_t> r) {
                for (auto i = r.begin(); i < r.end(); ++i)
                    buf_forces[i] += x[i];
            });
    }

#ifdef FMM_MPI
    AllReduce(buf_forces.data(), buf_forces.size());
#endif

    tbb::parallel_for(size_t(0), targets_num, [&](size_t i){
        forces[i] = buf_forces[index_mapping[i]];
    });
}

Here is the call graph for this function:

ComputePotentials()

void fmm::FastMultipole::ComputePotentials ( )

private

Definition at line 236 of file multipole.cpp.

{
    tbb::enumerable_thread_specific<std::complex<double>> dz_local;
    tbb::enumerable_thread_specific<double> phi_local;
    tbb::enumerable_thread_specific<std::vector<double>> buf_potentials_local((std::vector<double>(num_particles)));

    const auto& leaves = tree->levels.back();
    const auto& leaves_inner = inner_expansions.back();
    auto& particles = tree->particles;

#ifdef FMM_MPI
    auto [Begin, End] = LocalPart(0, tree->level_sizes.back());
#else
    size_t Begin = 0, End = tree->level_sizes.back();
#endif

    decltype(&TreeCell2d::source_range) range_ptr;
    if (tree->targets_num == 0) // targets = sources
        range_ptr = &TreeCell2d::source_range;
    else
        range_ptr = &TreeCell2d::target_range;
    const auto& index_mapping = tree->positions_map;

    tbb::parallel_for(Begin, End, [&](size_t i) {
        auto& dz = dz_local.local();
        auto& phi = phi_local.local();
        const auto& cell = leaves[i];
        const auto& inner = leaves_inner.data() + i * N;
        auto& buf_potentials = buf_potentials_local.local();

        const auto& [p1_begin, p1_end] = cell.*range_ptr;

        for (auto j = p1_begin; j < p1_end; ++j)
        {
            auto& particle = particles[j];

            if (range_ptr == &TreeCell2d::target_range && particle.q == 0)
            {
                phi = 0.0;

                const auto& [p2_begin, p2_end] = cell.source_range;
                for (auto k = p2_begin; k < p2_end; ++k)
                    phi += Potential2d(particle, particles[k]);

                for (const auto& idx : cell.closeneighbours)
                {
                    const auto& neighbour_cell = leaves[idx];
                    const auto& [p2_begin, p2_end] = neighbour_cell.source_range;

                    for (auto k = p2_begin; k < p2_end; ++k)
                        phi += Potential2d(particle, particles[k]);
                }
            }
            else
            {
                phi = Potential2d(particle, particle);

                for (auto k = j + 1; k < p1_end; ++k)
                {
                    Potential2dMutual(particle, particles[k], phi, buf_potentials[k]);
                }

                for (const auto& idx : cell.closeneighbours)
                {
                    const auto& neighbour_cell = leaves[idx];
                    const auto& [p2_begin, p2_end] = neighbour_cell.source_range;

                    for (auto k = p2_begin; k < p2_end; ++k)
                        Potential2dMutual(particle, particles[k], phi, buf_potentials[k]);
                }
            }
            buf_potentials[j] += phi;
        }

        for (auto j = p1_begin; j < p1_end; ++j)
        {
            auto& particle = particles[j];
            phi = 0.0;
            dz = particle.center - cell.center;
            complex<double> dzpow{ 1.0 };
            for (int k = 0; k < N; ++k)
            {
                phi += inner[k].real() * dzpow.real() - inner[k].imag() * dzpow.imag();
                dzpow *= dz;
            }
            buf_potentials[j] += phi;
        }
    });

    auto& buf_potentials = *buf_potentials_local.begin();
    for (auto it = buf_potentials_local.begin() + 1; it < buf_potentials_local.end(); it++)
    {
        const auto& x = *it;
        tbb::parallel_for(tbb::blocked_range<size_t>(0, num_particles),
            [&](tbb::blocked_range<size_t> r) {
                for (auto i = r.begin(); i < r.end(); ++i)
                    buf_potentials[i] += x[i];
            });
    }

#ifdef FMM_MPI
    AllReduce(buf_potentials.data(), buf_potentials.size());
#endif

    tbb::parallel_for(size_t(0), targets_num, [&](size_t i){
        potentials[i] = buf_potentials[index_mapping[i]];
    });
}

Here is the call graph for this function:

Downward()

void fmm::FastMultipole::Downward ( )

private

Definition at line 182 of file multipole.cpp.

{
#ifdef FMM_MPI
    std::vector<int> sizes(NProc());
    std::vector<int> displs(NProc());
#endif

    for (int i = 2; i < tree->tree_depth; ++i)
    {
        const auto& top_level = tree->levels[i - 1];
        const auto& top_inner = inner_expansions[i - 1];
        auto& bottom_level = tree->levels[i];
        auto& bottom_inner = inner_expansions[i];
        const auto& bottom_outer = outer_expansions[i];

#ifdef FMM_MPI
        auto [Begin, End] = LocalPart(0, tree->level_sizes[i]);
#else
        size_t Begin = 0, End = tree->level_sizes[i];
#endif

        tbb::parallel_for(Begin, End, [&](size_t j)
            {
                TreeCell2d& cell = bottom_level[j];
                auto& work = local_work.local();
                auto& parent_cell = top_level[cell.parent];
                L2L(top_inner.data() + N * cell.parent, parent_cell.center - cell.center, bottom_inner.data() + N * j);

                for (const auto& idx : cell.farneighbours)
                {
                    const auto& far_neighbour = bottom_level[idx];
                    M2L(bottom_outer.data() + idx * N, far_neighbour.center - cell.center, bottom_inner.data() + N * j, work);
                }
            });

#ifdef FMM_MPI
        {
            std::vector<std::complex<double>> buf(bottom_inner.size());
            for (int j = 0; j < NProc(); ++j)
            {
                sizes[j] = N * LocalPart(0, tree->level_sizes[i], j);
            }
            for (int j = 1; j < NProc(); ++j)
            {
                displs[j] = displs[j - 1] + sizes[j - 1];
            }
            MPI_Allgatherv(bottom_inner.data() + displs[MyID()], sizes[MyID()], MPI_COMPLEX16,
                buf.data(), sizes.data(), displs.data(), MPI_COMPLEX16, MPI_COMM_WORLD);
            std::swap(buf, bottom_inner);
        }
#endif
    }
}

Here is the call graph for this function:

L2L()

void fmm::FastMultipole::L2L ( const std::complex< double > *  a, const std::complex< double > &  z0, std::complex< double > *  b  )

private

Definition at line 89 of file multipole.cpp.

{
    for (int i = 0; i < N; ++i)
        b[i] = a[i];
    for (int j = 0; j < N; ++j)
    {
        for (int k = N - j - 1; k < N - 1; ++k)
        {
            b[k] -= z0 * b[k + 1];
        }
    }
}

Here is the caller graph for this function:

M2L()

void fmm::FastMultipole::M2L ( const std::complex< double > *  a, const std::complex< double > &  z0, std::complex< double > *  b, std::vector< std::complex< double > > &  work  )

private

Definition at line 69 of file multipole.cpp.

{
    work[0] = a[0];
    b[0] += a[0] * std::conj(log(-z0));
    for (int i = 1; i < N; ++i)
    {
        work[i] = ni(i) * a[i] / MyPow(z0, i);
        b[0] += work[i];
    }
    for (int i = 1; i < N; ++i)
    {
        complex<double> tmp{ 0.0 };
        for (int j = 1; j < N; ++j)
        {
            tmp += work[j] * detail::binom(i + j - 1, j - 1);
        }
        b[i] += divComp(-a[0] / double(i) + tmp, MyPow(z0, i));
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

M2M()

void fmm::FastMultipole::M2M ( const std::complex< double > *  a, const std::complex< double > &  z0, std::complex< double > *  b, std::vector< std::complex< double > > &  work  )

private

Definition at line 41 of file multipole.cpp.

{
    work[0] = 1.0;
    for (int i = 1; i < N; ++i)
        work[i] = work[i - 1] * z0;

    for (int j = 1; j < N; ++j)
    {
        for (int i = 1; i <= j; ++i)
        {
            b[j] += a[i] * work[j - i] * detail::binom(j - 1, i - 1);
        }
        b[j] -= a[0] * work[j] / double(j);
    }
    b[0] += a[0];
}

Here is the caller graph for this function:

Multipole()

void fmm::FastMultipole::Multipole ( std::complex< double > *  a, const std::pair< size_t, size_t > &  particle_range, const std::complex< double > &  z0  )

private

Definition at line 25 of file multipole.cpp.

{
    auto p_begin = tree->particles.begin() + particle_range.first;
    auto p_end = tree->particles.begin() + particle_range.second;
    for (int i = 1; i < N; ++i)
    {
        auto temp = std::accumulate(p_begin, p_end, 0.0i, [&z0, i](const complex<double>& x, const particle2d& y)
            {
                return x + y.q * MyPow(y.center - z0, i);
            });
        a[i] = -temp / double(i);
    }

    a[0] = std::accumulate(p_begin, p_end, 0.0i, [](const complex<double>& x, const particle2d& y) { return x + y.q; });
}

Here is the call graph for this function:

Here is the caller graph for this function:

Solve()

void fmm::FastMultipole::Solve ( std::vector< particle2d > &&  particles, double  eps = 1.e-8, int  N = FMM_AUTO, int  tree_depth = FMM_AUTO  )

private

size_t(std::max(3.0, ))//7;// (size_t)std::max(3.0, 2 + log(double(num_particles) / 100.0) / log(4.0));

Definition at line 476 of file multipole.cpp.

{
    double T = omp_get_wtime();
    //if (IAmRoot()) std::cout << "\n***************** Start FMM **************" << std::endl;
    num_particles = particles.size();
    if (N_ == FMM_AUTO)
        N = std::min(fmm::detail::_2d_MAX_MULTIPOLE_NUM, int(-1.18 * log(1.65 * eps)));
    else
        N = std::min(fmm::detail::_2d_MAX_MULTIPOLE_NUM, N_);
    //if (IAmRoot()) std::cout << "multipole num = " << N << std::endl;

    size_t initial_depth;
    if (tree_depth_ == FMM_AUTO)
        initial_depth = std::max((size_t)4, size_t(log(double(num_particles)) / log(4.0) + 0.5)) - 1;
    else
        initial_depth = tree_depth_;
    //if (IAmRoot()) std::cout << "tree depth = " << initial_depth << std::endl;

    tree = std::make_shared<MortonTree2d>(std::move(particles), initial_depth);
    tree_depth = tree->tree_depth;

    //if (tree_depth < initial_depth)
    //  std::cout << "Warning: tree_depth was reduced from " << initial_depth << " to " << tree_depth << " to ensure H_CELL < EPS_FORCE" << std::endl;


    double t = omp_get_wtime();
    outer_expansions.resize(tree_depth);
    inner_expansions.resize(tree_depth);
    for (int i = 0; i < tree->tree_depth; ++i)
    {
        auto& outer = outer_expansions[i];
        auto& inner = inner_expansions[i];
        outer.resize(tree->level_sizes[i] * N);
        inner.resize(tree->level_sizes[i] * N);
    }
    forces.resize(targets_num);
    potentials.resize(targets_num);
    //if (IAmRoot()) std::cout << "allocation time: " << omp_get_wtime() - t << std::endl;
    local_work = tbb::enumerable_thread_specific<vector<complex<double>>>{ vector<complex<double>>(N) };

    Upward();

    t = omp_get_wtime();
    Downward();
    //if (IAmRoot()) std::cout << "m2l+l2l time: " << omp_get_wtime() - t << std::endl;

    t = omp_get_wtime();
    ComputePotentials();
    //if (IAmRoot()) std::cout << "leaf potential time: " << omp_get_wtime() - t << std::endl;

    t = omp_get_wtime();
    ComputeForces();
    //if (IAmRoot()) std::cout << "leaf force time: " << omp_get_wtime() - t << std::endl;

    //if (IAmRoot()) std::cout << "total fmm time: " << omp_get_wtime() - T << std::endl;
    if (IAmRoot()) std::cout << "FMM time ConvVelo Wake: " << (omp_get_wtime() - T) * 1000.0 << std::endl;
    //if (IAmRoot()) std::cout << "***************** End FMM **************\n" << std::endl;
}

Here is the call graph for this function:

Upward()

void fmm::FastMultipole::Upward ( )

private

Definition at line 102 of file multipole.cpp.

{
    double t1 = omp_get_wtime();

    auto& leaves = tree->levels.back();
    auto& leaves_outer = outer_expansions.back();
#ifdef FMM_MPI
    auto [Begin, End] = LocalPart(0, tree->level_sizes[tree->tree_depth - 1]);
#else
    size_t Begin = 0, End = tree->level_sizes[tree->tree_depth - 1];
#endif
    tbb::parallel_for(Begin, End, [&](size_t i) {
        TreeCell2d& cell = leaves[i];
        Multipole(leaves_outer.data() + N * i, cell.source_range, cell.center);
    });
#ifdef FMM_MPI
    std::vector<std::complex<double>> buf(leaves_outer.size());
    std::vector<int> sizes(NProc());
    std::vector<int> displs(NProc());
    for (int i = 0; i < NProc(); ++i)
    {
        sizes[i] = N * LocalPart(0, tree->level_sizes[tree->tree_depth - 1], i);
    }multipole time:
    for (int i = 1; i < NProc(); ++i)
    {
        displs[i] = displs[i - 1] + sizes[i - 1];
    }
    MPI_Allgatherv(leaves_outer.data() + displs[MyID()], sizes[MyID()], MPI_COMPLEX16,
        buf.data(), sizes.data(), displs.data(), MPI_COMPLEX16, MPI_COMM_WORLD);
    std::swap(buf, leaves_outer);
#endif
//  if (IAmRoot()) std::cout << "multipole time: " << omp_get_wtime() - t1 << std::endl;

    t1 = omp_get_wtime();

    for (int i = (int)(tree->tree_depth - 2); i >= 0; --i)
    {
        auto& top_level = tree->levels[i];
        auto& top_outer = outer_expansions[i];
        const auto& bottom_level = tree->levels[i + 1];
        const auto& bottom_outer = outer_expansions[i + 1];
#ifdef FMM_MPI
        auto [Begin, End] = LocalPart(0, tree->level_sizes[i]);
#else
        size_t Begin = 0, End = tree->level_sizes[i];
#endif
        tbb::parallel_for(Begin, End, [&](size_t j)
            {
                TreeCell2d& cell = top_level[j];
                auto& work = local_work.local();
                const auto& [begin, end] = cell.source_range;

                for (auto k = begin; k < end; ++k)
                {
                    const auto& children_cell = bottom_level[k];
                    M2M(bottom_outer.data() + k * N, children_cell.center - cell.center, top_outer.data() + j * N, work);
                }
            });

#ifdef FMM_MPI
        {
            std::vector<std::complex<double>> buf(top_outer.size());
            for (int j = 0; j < NProc(); ++j)
            {
                sizes[j] = N * LocalPart(0, tree->level_sizes[i], j);
            }
            for (int j = 1; j < NProc(); ++j)
            {
                displs[j] = displs[j - 1] + sizes[j - 1];
            }
            MPI_Allgatherv(top_outer.data() + displs[MyID()], sizes[MyID()], MPI_COMPLEX16,
                buf.data(), sizes.data(), displs.data(), MPI_COMPLEX16, MPI_COMM_WORLD);
            std::swap(buf, top_outer);
        }
#endif
    }

    //if (IAmRoot()) std::cout << "m2m time: " << omp_get_wtime() - t1 << std::endl;
}

Here is the call graph for this function:

Member Data Documentation

forces

std::vector<std::complex<double> > fmm::FastMultipole::forces

Definition at line 17 of file multipole.h.

inner_expansions

std::vector<std::vector<std::complex<double> > > fmm::FastMultipole::inner_expansions

private

Definition at line 34 of file multipole.h.

local_work

tbb::enumerable_thread_specific<std::vector<std::complex<double> > > fmm::FastMultipole::local_work

private

Definition at line 41 of file multipole.h.

N

int fmm::FastMultipole::N

private

Definition at line 37 of file multipole.h.

num_particles

size_t fmm::FastMultipole::num_particles

private

Definition at line 38 of file multipole.h.

outer_expansions

std::vector<std::vector<std::complex<double> > > fmm::FastMultipole::outer_expansions

private

Definition at line 33 of file multipole.h.

potentials

std::vector<double> fmm::FastMultipole::potentials

Definition at line 18 of file multipole.h.

targets_num

size_t fmm::FastMultipole::targets_num

private

Definition at line 39 of file multipole.h.

tree

std::shared_ptr<MortonTree2d> fmm::FastMultipole::tree

private

Definition at line 32 of file multipole.h.

tree_depth

size_t fmm::FastMultipole::tree_depth

private

Definition at line 36 of file multipole.h.

---

The documentation for this class was generated from the following files:

• VMfmm/cpu/multipole.h
• VMfmm/cpu/multipole.cpp
